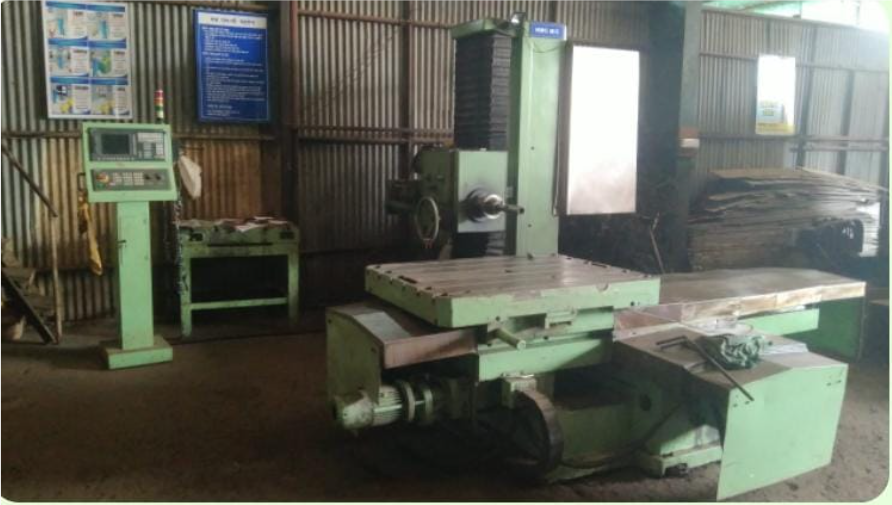

The HMC (Horizontal Machining Center) from Sanracco (Italian) is used for high-precision and heavy-duty machining operations. Equipped with a Siemens 828D controller, it offers excellent accuracy, control, and repeatability. Its 3-ton table capacity allows machining of heavy workpieces, making it ideal for industries such as automotive, aerospace, and general engineering.
Make : Sanracco (Italian) Controller : Siemens-828D Table Size: 1220mm X 920mm

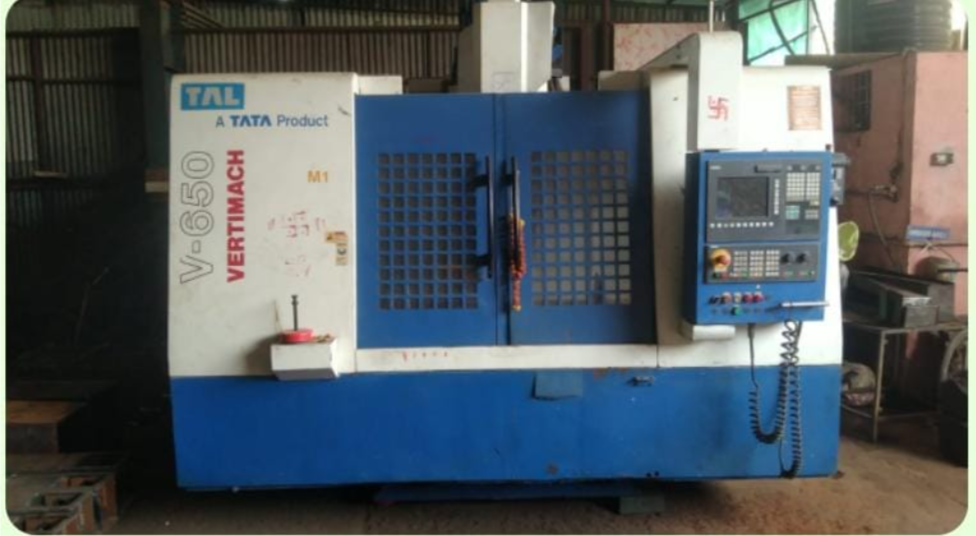

The VMC (Vertical Machining Center), Tal V650 (Indian), is a highly efficient and precise machine designed for a wide range of machining operations. Equipped with a Siemens 820D controller, it provides superior control, accuracy, and smooth operation. it is ideal for machining medium to large components with high precision. The vertical spindle setup makes it suitable for milling, drilling, tapping, and boring applications.
Make : Tal v650 (Indian) Controller : Siemens-820D Table Size: 1200mm X 650mm| SR NO | MACHINE | MAKE | CAPACITY |
|---|---|---|---|
| 1. | HMC Machine | SAN-RACCO (Italian) |
Table Size 1220 x 920 Travel – X 1550mm | Y 980mm | Z 1000mm ( Capacity : –3 Ton on table ) |
| 2. | VMC Machine | Tal V650 (Indian) |
Table 1200 x 650mm Travel – X 1000mm | Y 650mm | Z 700mm ( Capacity : – 800 Kg ) |
| 3. | Radial Drilling Machine | Italian | RM65 Capacity |
| Sr no | Instrument | Make | Serial no | Range in MM |
|---|---|---|---|---|
| 1 | Plunger Dial | Classic Yamayo | 80540 | 0 - 10 |
| 2 | Vernier Caliper | Mitatoyo | 12111814 | 0 - 300 |
| 3 | Internal Micrometer | Yamayo | 41204041 | 50 - 500 |
| 4 | Height Gauge | Yamayo | — | 0 - 600 |
| 5 | Depth Vernier | China | 7050346 | 0 - 300 |
| 6 | External Micrometer | Classic Yamayo | — | 125 - 150 |
| 7 | External Micrometer | Classic Yamayo | 31046044 | 0 - 25 |
| 8 | External Micrometer | Aerospace | C3096 | 25 - 50 |
| 9 | External Micrometer | Yamayo | — | 150 - 300 |
| 10 | Bore Gauge | Mitatoyo | — | 18 - 35 |
| 11 | Bore Gauge | Yamayo | — | 160 - 250 |
| 12 | Bore Gauge | Mitatoyo | — | 50 - 150 |
